Maplejet Hx Nitro Thermal Inkjet Printer-NeoMark Package

Description

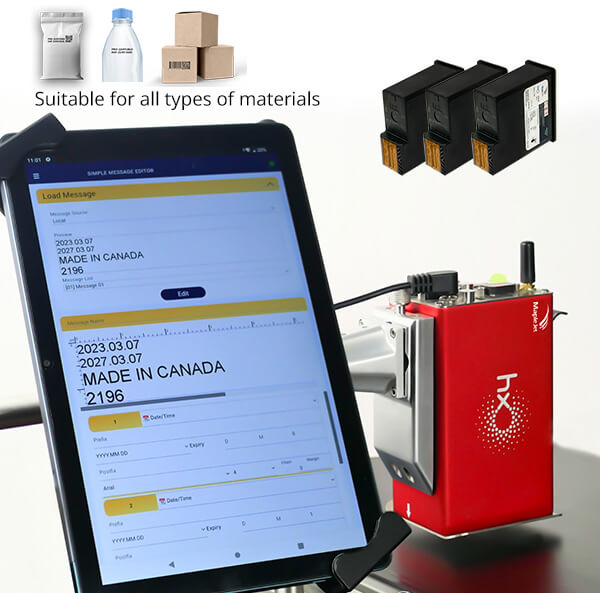

Maplejet Hx Nitro Thermal Inkjet Printer

MapleJet Hx Nitro® Thermal Inkjet Printer Overview

The Maplejet Hx Nitro® Thermal Inkjet Printer is suitable for coding on wide range of substrates such as glass, plastic, metal, flexible packaging, boxes, glossy boxes, and much more. Its cutting-edge communication technology enables you to monitor and control multiple Hx Nitro® printers wirelessly from a single WIFI enabled device in your operation office. Print up to 600 DPI high-resolution alphanumeric text, date codes, lot codes, external data, barcodes, counters, logos, static and variable data. The Hx Nitro®  is a feature rich and user friendly inkjet printer!

What’s In The Box?

Your purchase includes the printer, 11” Touch Screen Display with Built-in Hx Manager (software), your choice of ink, and the following accessories:

• Stainless Steel L-Shaped Bracket (Assembly Video)

• Fine Tune Module (Assembly Video)

• Product Sensor (Assembly Video)

• Choice of  free bundle of 3 ink cartridges (Boxtron, ChronPlast-W or eUrex)

Optional Accessories

• Hx Printer tripod Floor Stand

• Encoder

• Conveyor

• Eye Mark Sensor

Why to choose Maplejet Hx Nitro® Printer?

• Maintenance-free thermal inkjet based on Funai technology

• Wirelessly monitor and control your inkjet printer(s) from any smart device (cell phone, tablet, laptop, CPU, etc.)

• Solvent-based inks allowing you to print on just about any substrate

• Print alphanumeric text, barcodes, QR codes, logos, date / time codes, batch codes, external data, serial numbers, counters, variable data, sequential numbers and more

• Print speeds up to 116 meters per minute (380 fpm)

• Print up to 15 times per second

• Print distance up to 10mm (0.4″) (eUrex)

• Print heights ranging from 1.2mm to 12.7mm (0.5″)

• 2 Stage Built-in Multicolor Beacon/Buzzer to Check ink level status (30% Low and 10% Critical Low)

• One year warranty

Message Design

Option 1: Standalone Message Design Software-Windows Only (Included – FREE of charge)

• Vanguard Create Software Introduction

• Easily create multiple objects in a message (text, date code, lot code, batch code, external data, barcode, counter, graphic, etc.)

• Edit quickly and instantly to any connected Hx Nitro printer through WIFI, USB or RS232 port

• Create, save and recall unlimited messages (PC software only)

Option 2: Built-in Web-Based Message Editor and Monitoring (No Additional Software needed)

• Easily select object types from a menu up to four lines with option for pre-fix and post-fix on each line (text, date code, lot code, batch code,  barcode, counter, etc.)

• 10 saved messages to recall instantly

• Operator Password protection

• Real time daily production reports

• Ink consumption calculator

• Economy Mode printing (increases number of prints and extends cartridge longevity)

• Easy diagnostics using advanced health check and diagnostic codes.

• Hx Manager (Introduction Video)

• Simple Message Editor (Introduction Video)

Communication & Networking

• Wirelessly monitor and control multiple Hx Nitro® printers throughout your facility from a single smart device in your control room

• Connect Hx Nitro® printer(s) to PLC, scale, barcode reader, camera or any online data source or simply use *.TXT, *.XLSX or *.XLM as database

• Wired USB and RS232 connections

Maintenance Free Thermal InkJet (TIJ) Technology

• Based on Funai® print engine

• By changing the cartridge basically you are replacing your printhead

• Each printhead has 2 selectable nozzle rows to switch between

• More durable compared to other stationary printheads due to compact design and less moving parts

Cost of Ownership

• One ink cartridge can yield more than 11,000,000 characters depending on font type/size and parameters

• No maintenance, no service

• Easy installation and flexible setup

• Upgrade the firmware remotely to get latest features

• Great ink consumption, See Ink Estimation below

Ink Estimation

• Hx Nitro® coder will automatically calculate number of prints per cartridge based upon the loaded message, ink type and selected settings (font type/size, speed, dimensions, etc.)

• Print 360,000+ characters at 12.7 mm or 1/2″ tall character height

• Print 1,300,000+ characters at 6.35 mm or 1/4″ tall character height

• Print 5,800,000+ characters at 3.175 mm or 1/8″ tall character height

• Print 11,000,000+ characters at 2.54 mm or 1/10″ tall character height

30-Day Performance Guarantee

• Customer can return printer, for any reason, within 30 days and receive full refund

• Customer responsible for return shipping and used consumables

• Please contact us if you have any questions regarding your application

Training / Support Videos / Resources

• Training Video Page

• User Guides

• Hx Nitro Thermal Inkjet Printer Catalog
