Coding & Marking with reliability

Brand Up Your Pipe

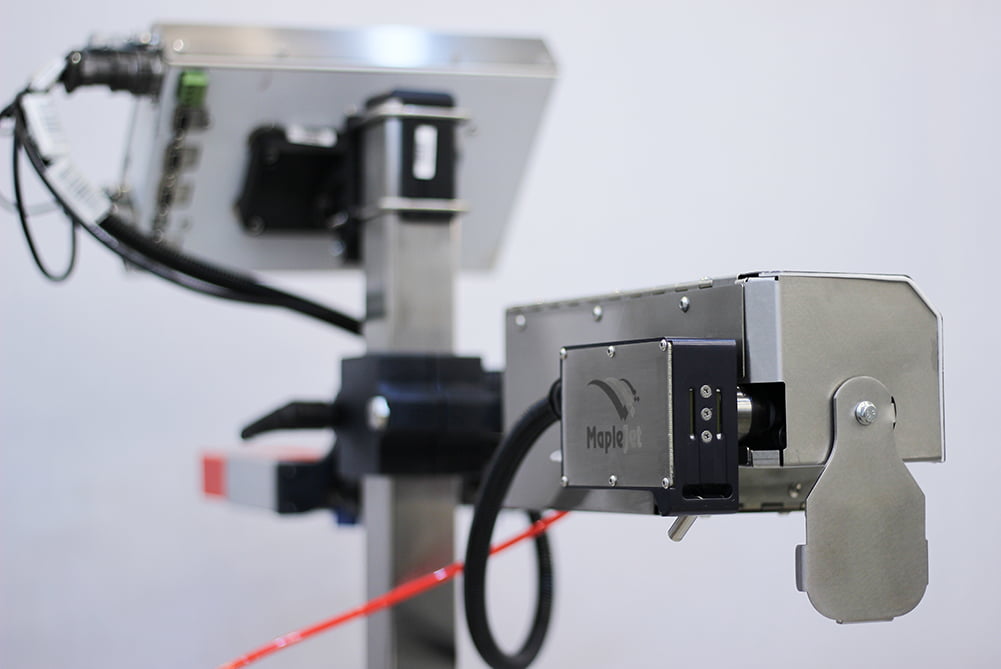

Maplejet inkjet coding and marking Pipe Printer

Maplejet coding and marking pipe printer allows to print two colors simultaneously onto various Pipe substrates. The printer comes in two versions – single color and bi-color printer, both providing perfect coding solutions in the pipe industry.

The Pipe Printer comes with choices of Yellow, Red, Blue & White for printing on PVC pipe materials. Its modular design enables it to use two separate print engines using one controller; thus, adding more ability to print either on two sides of the pipe or extending its printing height.

Pipe Printer Solo

Print a single color of high resolution message onto any pipe and extrusion lines. Various ink selections are available depending on PVC material opacity. 

Sustainable & Eco-friendly Printing

Maplejet ProDigit uses a long-lasting printhead powered by Xaar Printhead Technology. ProDigits printhead lasts for an average of two years even on continuous production. This promotes  good environmental practice in avoiding disposal of toxic waste materials drawn by waste ink and plastic into the environment.

Bi-color Pipe Printer

Print two colors of high-resolution message onto any extrusion lines.  Bi-color inkjet coding and marking printers are not only low-cost of ownership but also economically friendly for companies looking to save cost while branding directly on the product.  It prints high-resolution logos, pictograms, text, and other important information in two colors. using a single print engine. This ability helps product manufacturers boost up their company branding and step ahead of their competitors in the industry.



Save Cost While Printing

ProDigit inkjet coding printer offers low-cost of ownership with its simple yet industrial strength functionalities. Using durable long-lasting printheads that can save cost compared to disposable printheads of thermal inkjet printers. ProDigit printers are operator-friendly and require low maintenance to continuously produce superior print quality throughout the production.

Specifications

  • Two-color printing on porous materials
  • Can operate single or double printheads using one controller
  • Easy and simple to use and no extensive training required
  • User-friendly display interface
  • Design, print, and store message capability
  • Up to 8 number of lines with a maximum speed of 40M/min
  • Remote & field upgradeable with modular components and options
  • Compatible on oil-based for porous surfaces or solvent-based for non-porous surfaces
  • Compact with industrial-strength infrastructure
  • Display screen: 8.4” color TFT LCD Industrial Touchscreen
  • Printing channels: 2 channels with separate messages
  • Print Module Connections: Expandable up to 6 heads
  • Connectivity: PC, PLC, Weighing device, barcode reader
  • Connection Ports: RS232
  • External Database Print Capacity: More than 1 Million records
  • Menu Language: All languages available on request
  • Message Saving Capacity: Up to 999 Messages
  • Password Protection: Yes
  • Input Voltage: 90-240 VAC
  • Power: 60W
  • System Diagnostics: Yes
  • Environmental Conditions: 0-50 degrees Celsius – Humidity 0-80% RH
  • Start & Stop Time: Immediate
  • Standard: CE, CSA & UL
  • Resolution: 180 dpi
  • Max Print Speed: Up to 40 m/min
  • Max No. of Lines: 8
  • Height Range of Printable Character: 2-18mm
  • Number of Fonts: Six preloaded fonts (user-defined)
  • Logo Printing Options: Yes
  • Message Component: Text, Date, Time, Logo, Counter, Shift, Barcode, External Data, Lot Number & Basic shapes
  • Auto Update: Production & Expiry Date, Time, Shift, External Data
  • Barcode: All major Barcodes (1D, 2D & GS1)
  • Print Module Angle Adjustment: 0-180 degrees
  • Ink Consumption Control: Yes
  • Counter: Various counter options
  • Body Material: Stainless Steel
  • Wight with Stand: 21 kg
  • Controller Dimension: 300 x 192 x 60 mm
  • Standard Software Option: Flexicode Message Design Software, Remote Manager   Data Management Software
  • Connectivity with Third-Party Software: Yes
  • Ink Supply System: Standard Cartridge Based System (180ml)
  • Ink Types: Solvent-based (Pipe), Oil-based (Porous Materials)
  • Ink Colour Options: Black, White, Red, Blue, Yellow
  • Ink Supply System: Hybrid Ink System (Auto Priming) + Heater & Agitation  System
  • Printhead Configuration: Square Type Printhead (with Pneumatic System for Pipe  Marker)
  • Encoder: Yes
  • Extender System: Enables Connectivity up to six print module
  • Low-Level Warning Ink System: Yes
  • Support Options: Stainless Steel Stand, Aluminium Stand, Elevator, T-bracket
  • Conveyor: Various sizes and designs available on request
