Maplejet Hx Nitro Thermal Inkjet Printer



function wfa_pstMesgFrmFom (evt){if(evt.origin === 'https://crm.zoho.com'|| evt.origin === 'https://crm.zohopublic.com'){var loc_obj=JSON.stringify({ origin:window.location.origin, pathname:window.location.pathname, search:window.location.search, hash:window.location.hash}); evt.source.postMessage(('prnt_wnd_pg_lc_rc_frm_prwindow_'+loc_obj), evt.origin);}}window.addEventListener('message', wfa_pstMesgFrmFom, false);


Maplejet Hx Nitro® Thermal Inkjet Printer Overview

The Maplejet Hx Nitro® coder is suitable for coding on wide range of substrates such as glass, plastic, metal, flexible packaging, boxes, glossy boxes, and much more. Its cutting-edge communication technology enables you to monitor and control multiple Hx Nitro® printers wirelessly from a single WIFI enabled device in your operation office. Print up to 600 DPI high-resolution alphanumeric text, date codes, lot codes, external data, barcodes, counters, logos, static and variable data. The Hx Nitro®  is a feature rich and user friendly inkjet printer!

What’s In The Box?

Your purchase includes the printer, external product detector, mounting brackets, power supply and software

Optional Accessories

Why to choose Maplejet Hx Nitro® Printer?

  • Maintenance-free thermal inkjet based on Funai technology
  • Wirelessly monitor and control your inkjet printer(s) from any smart device (cell phone, tablet, laptop, CPU, etc.)
  • Solvent-based inks allowing you to print on just about any substrate
  • Print alphanumeric text, barcodes, QR codes, logos, date / time codes, batch codes, external data, serial numbers, counters, variable data, sequential numbers and more
  • Print speeds up to 116 meters per minute (380 fpm)
  • Print up to 15 times per second
  • Print distance up to 10mm (0.4″) (eUrex)
  • Print heights ranging from 1.2mm to 12.7mm (0.5″)
  • 2 Stage Built-in Multicolor Beacon/Buzzer to Check ink level status (30% Low and 10% Critical Low)
  • One year warranty

Message Design

Option 1: Standalone Message Design Software-Windows Only (Included – FREE of charge)
  • Vanguard Create Software Introduction
  • Easily create multiple objects in a message (text, date code, lot code, batch code, external data, barcode, counter, graphic, etc.)
  • Edit quickly and instantly to any connected Hx Nitro printer through WIFI, USB or RS232 port
  • Create, save and recall unlimited messages (PC software only)
Option 2: Built-in Web-Based Message Editor and Monitoring (No Additional Software needed)
  • Easily select object types from a menu up to four lines with option for pre-fix and post-fix on each line (text, date code, lot code, batch code,  barcode, counter, etc.)
  • 10 saved messages to recall instantly
  • Operator Password protection
  • Real time daily production reports
  • Ink consumption calculator
  • Economy Mode printing (increases number of prints and extends cartridge longevity)
  • Easy diagnostics using advanced health check and diagnostic codes
  • Hx Manager (Introduction Video)
  • Simple Message Editor (Introduction Video)

Communication & Networking

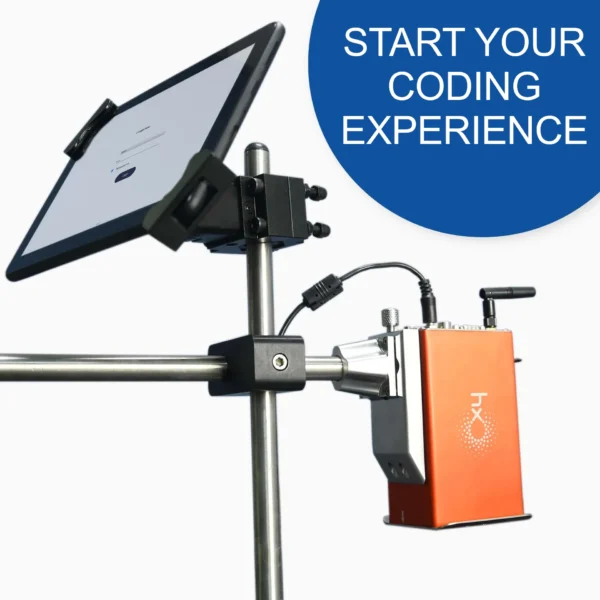

  • Wirelessly monitor and control multiple Hx Nitro® printers throughout your facility from a single smart device in your control room
  • Connect Hx Nitro® printer(s) to PLC, scale, barcode reader, camera or any online data source or simply use *.TXT, *.XLSX or *.XLM as database
  • Wired USB and RS232 connections

Maintenance Free Thermal Ink Jet (TIJ) Technology

  • Based on Funai® print engine
  • By changing the cartridge basically you are replacing your printhead
  • Each printhead has 2 selectable nozzle rows to switch between
  • More durable compared to other stationary printheads due to compact design and less moving parts

Cost of Ownership

  • One ink cartridge can yield more than 11,000,000 characters depending on font type/size and parameters
  • No maintenance, no service
  • Easy installation and flexible setup
  • Upgrade the firmware remotely to get latest features
  • Great ink consumption, See Ink Estimation below

Ink Estimation

  • Hx Nitro® coder will automatically calculate number of prints per cartridge based upon the loaded message, ink type and selected settings (font type/size, speed, dimensions, etc.)
  • Print 360,000+ characters at 12.7 mm or 1/2″ tall character height
  • Print 1,300,000+ characters at 6.35 mm or 1/4″ tall character height
  • Print 5,800,000+ characters at 3.175 mm or 1/8″ tall character height
  • Print 11,000,000+ characters at 2.54 mm or 1/10″ tall character height

Ink Compatibility

Maplejet Hx Nitro coding machine is compatible with MapleJet Porous and Non-porous ink types:
  1. Boxtron (Black, Blue, and Red) – perfect for printing onto corrugated boxes, cartons and paperboards.
  2. Chronplast-S – fast drying ink that works perfectly with Metal, PET, PE, and Glossy or coated paper. Recommended on high-temperature working environment.
  3. Chronplast-W – fast-drying ink perfect for any porous and non-porous substrate. Recommended in the low-temperature working environment.
  4. eUrex – a high-throw distance cartridge ideal for PVC, PP, PET, ABS, Metal, Glass, Polystyrene and Treated Polyethylene film.
  5. Ultraflex –super-fast drying ink perfect for non-porous substrates such as BOPP, HDPE, PE, PP, PVC, PET, ABS, Polystyrene, and Treated Polyethylene film.

30-Day Performance Guarantee

  • Customer can return printer, for any reason, within 30 days and receive full refund
  • Customer responsible for return shipping and used consumables
  • Please contact us if you have any questions regarding your application

Training / Support Videos / Resources
