Description
Maplejet Hx Cartro® Inkjet Printer Overview

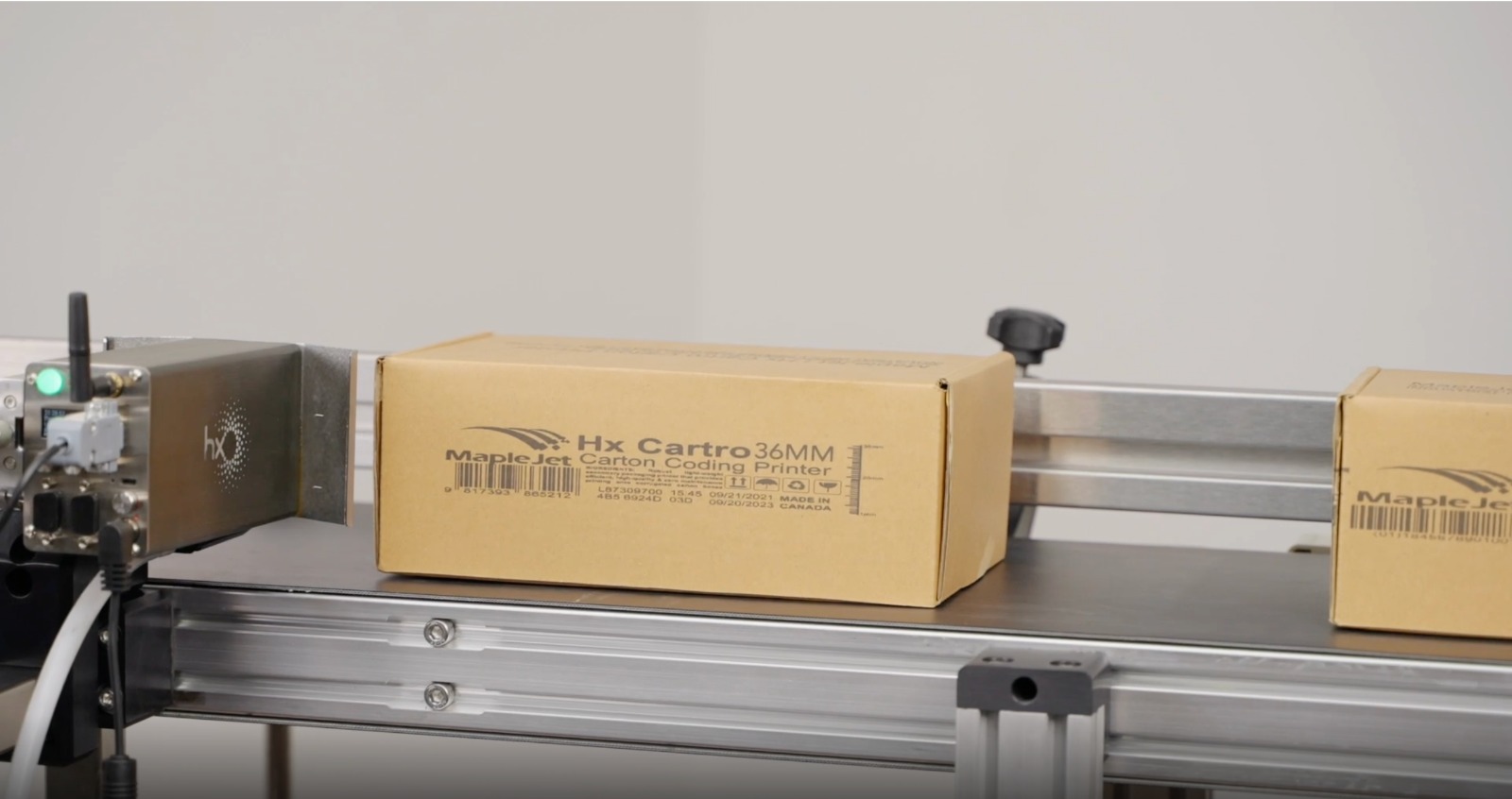

Maplejet Hx Cartro case coder is a robust lightweight secondary packaging printer that provides efficient, high-quality & zero maintenance printing onto corrugated carton boxes.
The printer is built with a low ink alarm warning beacon that monitors the ink level of its 160ml standard cartridge ink system. It is fast drying, prints with superior quality and is fade-proof. Its control system is based on any Wi-Fi-enabled smart device such as a smartphone, tablet, or computer. Hx Cartro gives a maximum of up to 36mm print height.
What’s In The Box?
Your purchase includes the printer, external product detector, mounting brackets, power supply and software
-
Ink cartridges are sold separately (Poroen Ink 160ml for porous materials)
Optional Accessories
Why choose Maplejet Hx Cartro® Carton Printer?
-
Maintenance-free industrial inkjet printer with permanent head
-
Wirelessly monitor and control your inkjet printer(s) from any smart device (cell phone, tablet, or laptop)
-
Bio-based Oil-based inks for printing on any porous substrate
-
Print alphanumeric text, barcodes, QR codes, logos, date/time codes, batch codes, external data, serial numbers, counters, variable data, sequential numbers and more
-
Print speeds up to 60 meters per minute
-
Print heights ranging from 1.2mm to 36mm (1.4″)
-
Two-stage built-in Multi-color beacon/buzzer to check ink level status (30% Low and 10% Critical Low)
-
One year warranty
Message Design
Option 1: Standalone Message Design Software-Windows Only (Included – FREE of charge)
-
Vanguard Create Software Introduction
-
Easily create multiple objects in a message (text, date code, lot code, batch code, external data, barcode, counter, graphic, etc.)
-
Edit quickly and instantly to any connected Hx Cartro printer through WIFI, USB or RS232 port
-
Create, save and recall unlimited messages (PC software only)
Option 2: Built-in Web-Based Message Editor and Monitoring (No Additional Software needed)
-
Easily select object types from a menu of up to four lines with options for pre-fix and post-fix on each line (text, date code, lot code, batch code, barcode, counter, etc.)
-
10 saved messages to recall instantly
-
Operator Password protection
-
Real-time daily production reports
-
Ink consumption calculator
-
Economy Mode printing (increases the number of prints)
-
Easy diagnostics using
-
Hx Manager
-
Simple Message Editor
Communication & Networking
-
Wirelessly monitor and control multiple Hx Cartron® printers from a single smart device in your control room
-
Connect Hx Cartro® printer(s) to PLC, scale, barcode reader, camera or any online data source or simply use *.TXT, *.XLSX or *.XLM as database
-
Wired USB and RS232 connections
Cost of Ownership
-
No maintenance, no service
-
Easy installation and flexible setup
-
Upgrade the firmware remotely to get the latest features via the Field Upgrade function
-
Great ink consumption
30-Day Performance Guarantee
-
Customers can return the printer, for any reason, within 30 days and receive a full refund
-
Customer responsible for return shipping and used consumables
-
Please contact us if you have any questions regarding your application
